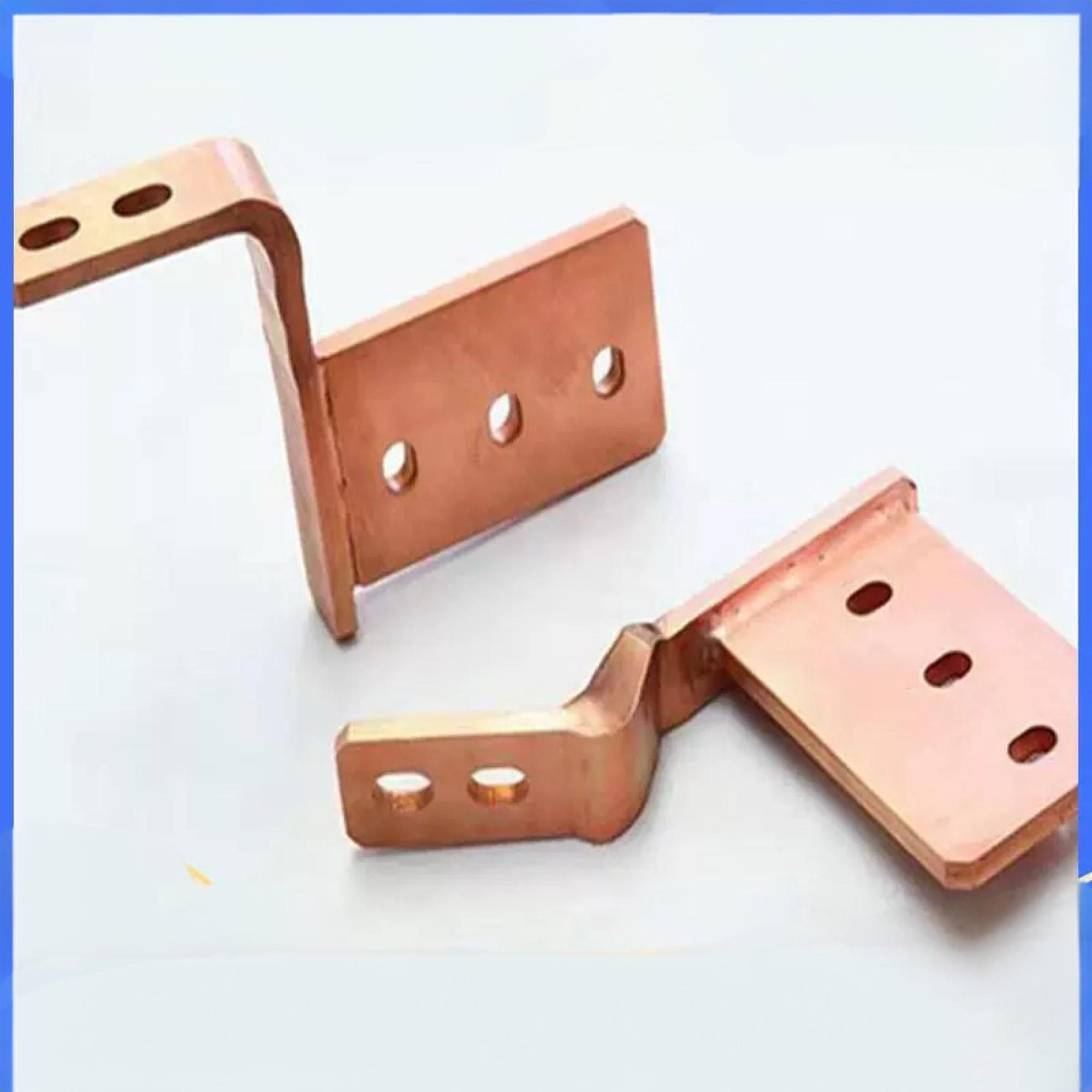

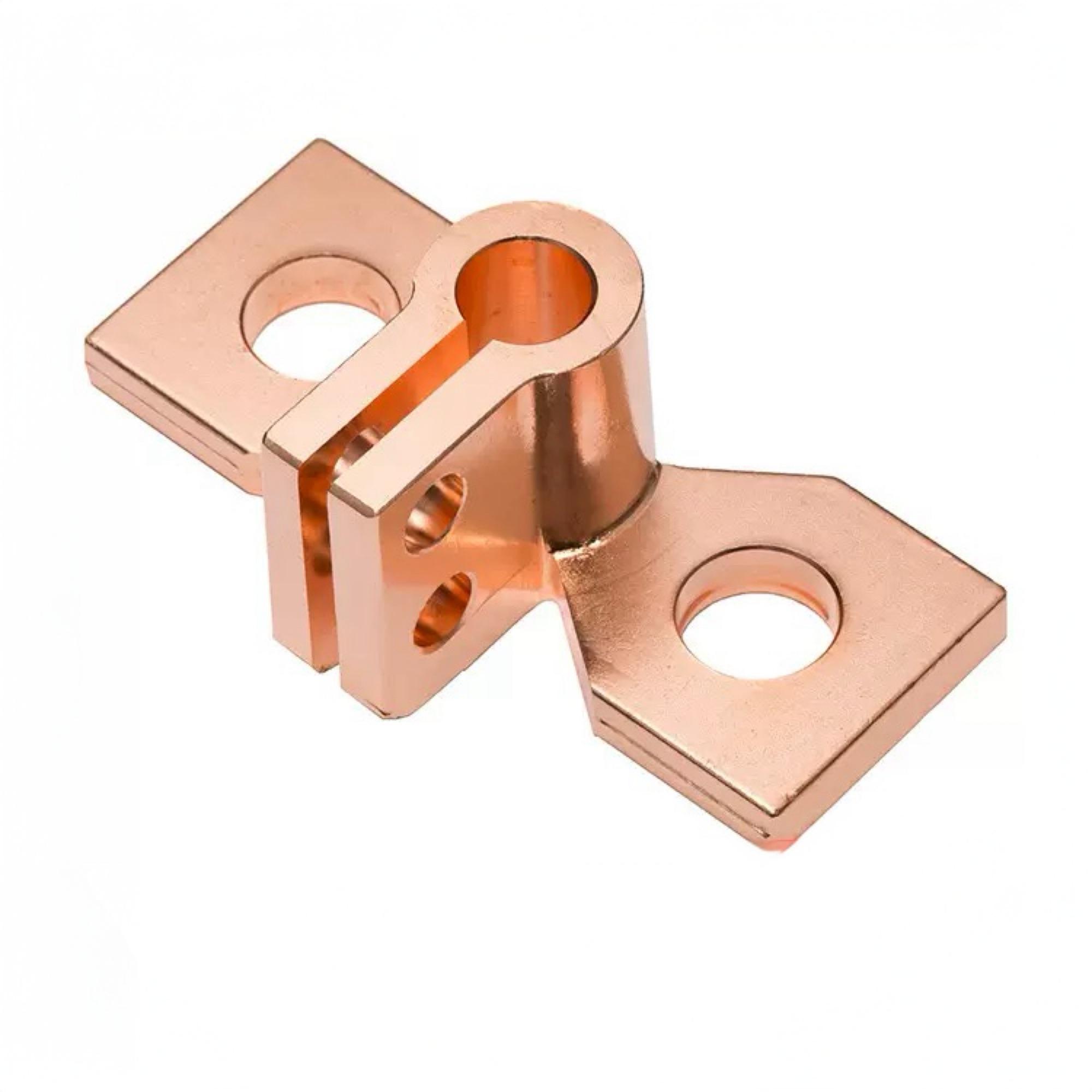

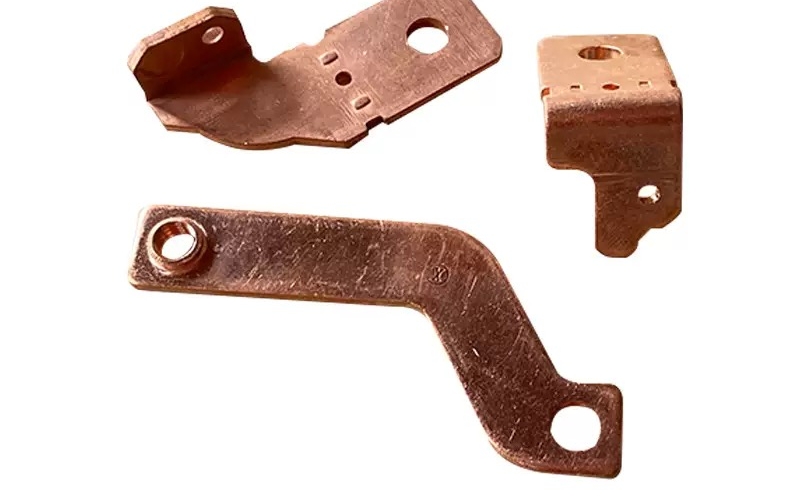

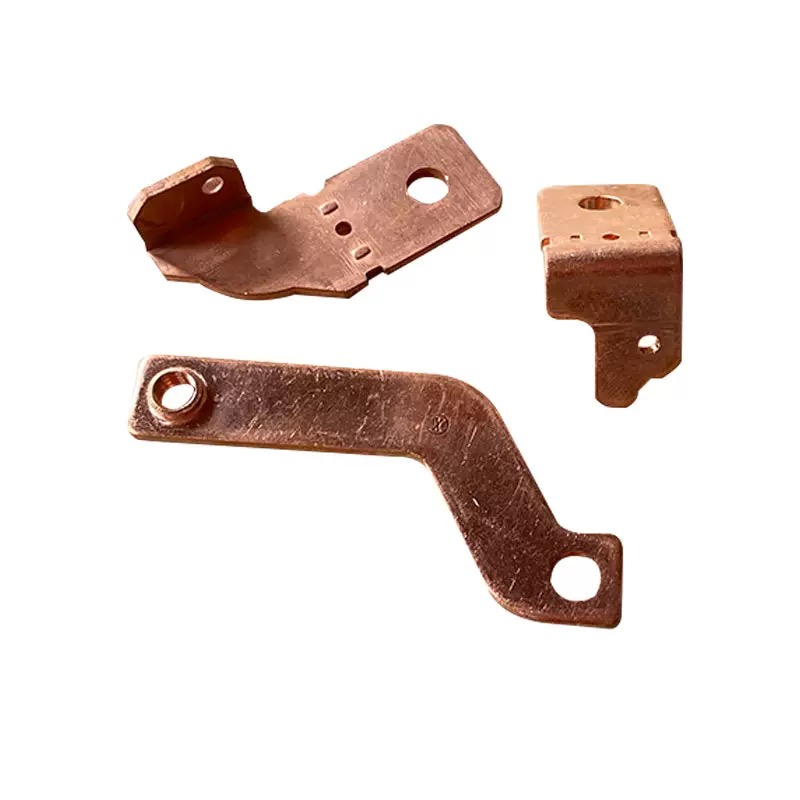

Purple copper stamping parts

I. Basic Material Parameters

Material grade: T2 copper, TU1 oxygen-free copper, C1100 copper

2. Material purity: Copper content ≥ 99.90%

3. Material hardness: Soft O state, Semi-hard 1/2H state, Fully hard H state

4. Material thickness: 0.1mm to 3.0mm. Customization available.

5. Surface finish: Mirror finish, frosted finish, matte finish, acid-washed natural color

II. Dimension Accuracy Parameters

Shape tolerance: ±0.02mm to ±0.05mm

2. Diameter tolerance: ±0.015mm

3. Bending angle tolerance: ±0.5°

4. Flatness: ≤ 0.03mm/100mm

5. Step distance / Positioning accuracy: ±0.01mm

III. Pressing Process Parameters

Processing technology: Precision progressive die stamping, punching, blanking, bending, stretching, pressing ribs, flanging, and riveting for integrated forming.

2. Production method: High-speed continuous die automatic stamping

3. Applicable molds: Precision progressive dies, single-process stamping dies

4. Batch production capacity: Capable of producing tens of thousands of items per day, supporting large-scale mass production.

5. Minimum bending radius: R0.15mm

IV. Physical Performance Parameters

Conductivity: ≥ 58 MS/m, excellent conductivity performance

2. Thermal conductivity: ≥ 401 W/(m·K)

3. Tensile strength: 200 - 380 MPa (varies depending on the hardness/softness state)

4. Elongation: Soft state ≥ 35%, easy to bend without breaking

5. Temperature resistance performance: Resistant to high temperatures, not prone to oxidation, suitable for electrical and new energy applications.

V. Surface Treatment Parameters

Optional process:

Original color cleaning, oil removal and oxidation prevention

Tin plating, silver plating, gold plating

Dulling anti-rust and anti-oxidation coating

Polished and brushed finish

VI. Applicable Industries & Characteristics

Application fields: Electrical connectors, new energy conductive sheets, electrical switch accessories, precision electronic copper terminals, hardware conductive stamping parts

2. Product advantages: High conductivity, high heat conductivity, good toughness, easy for stamping and molding, corrosion-resistant, and not prone to deformation.
