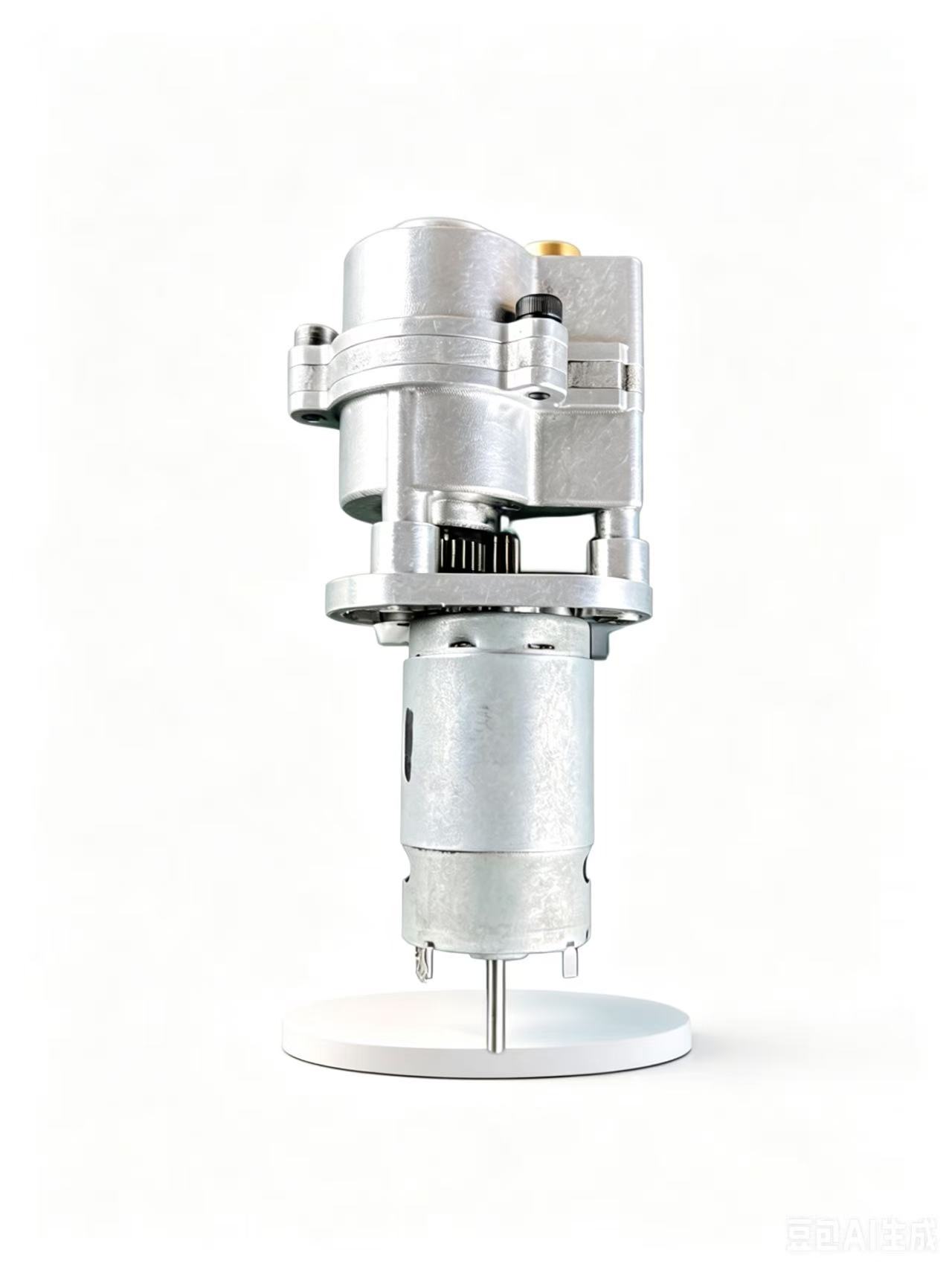

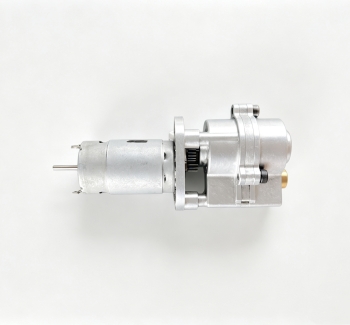

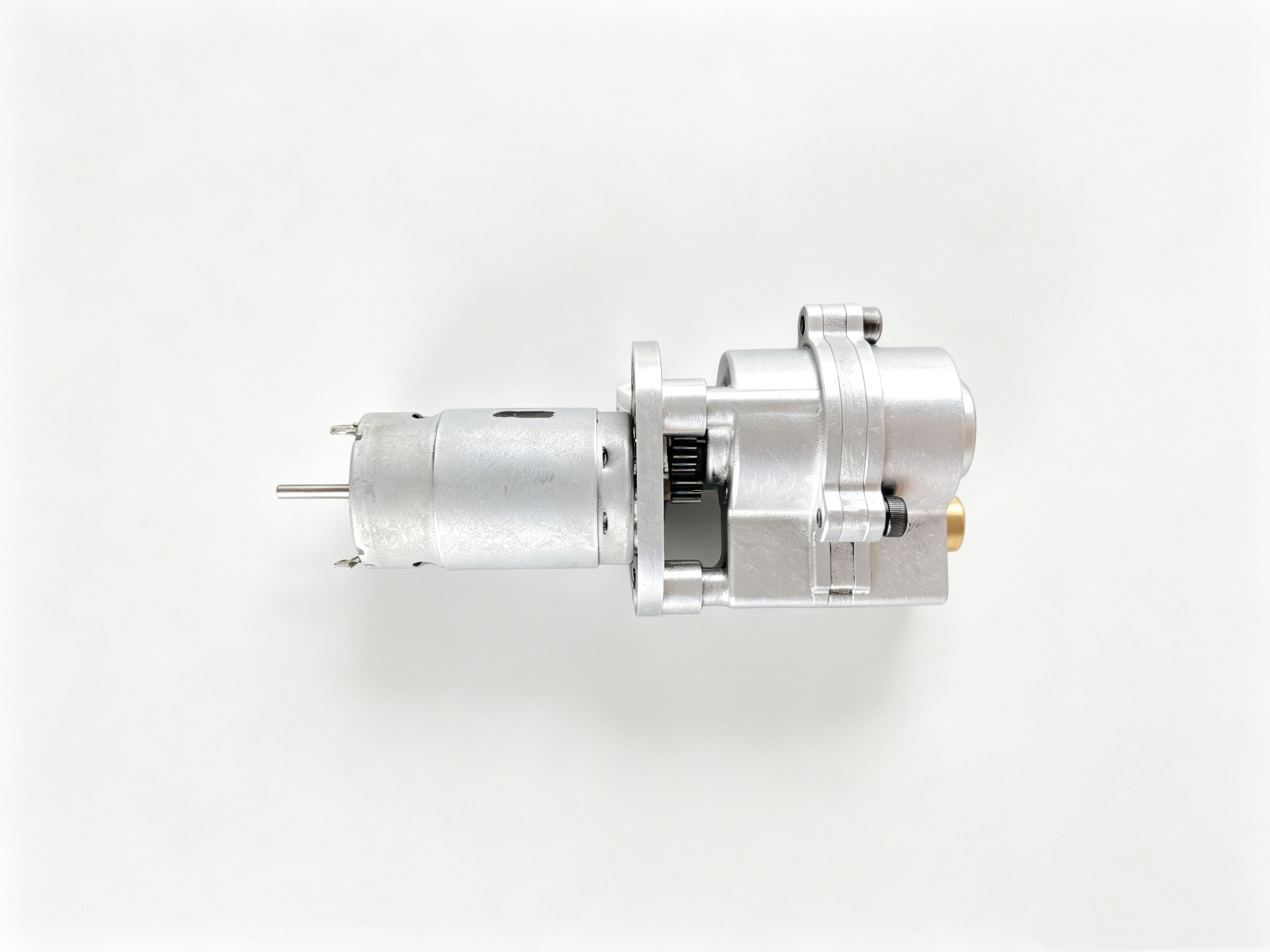

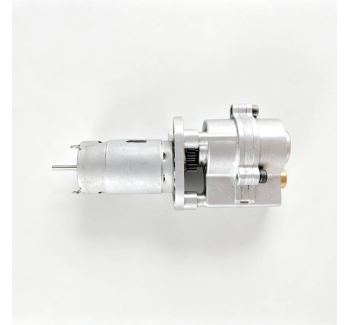

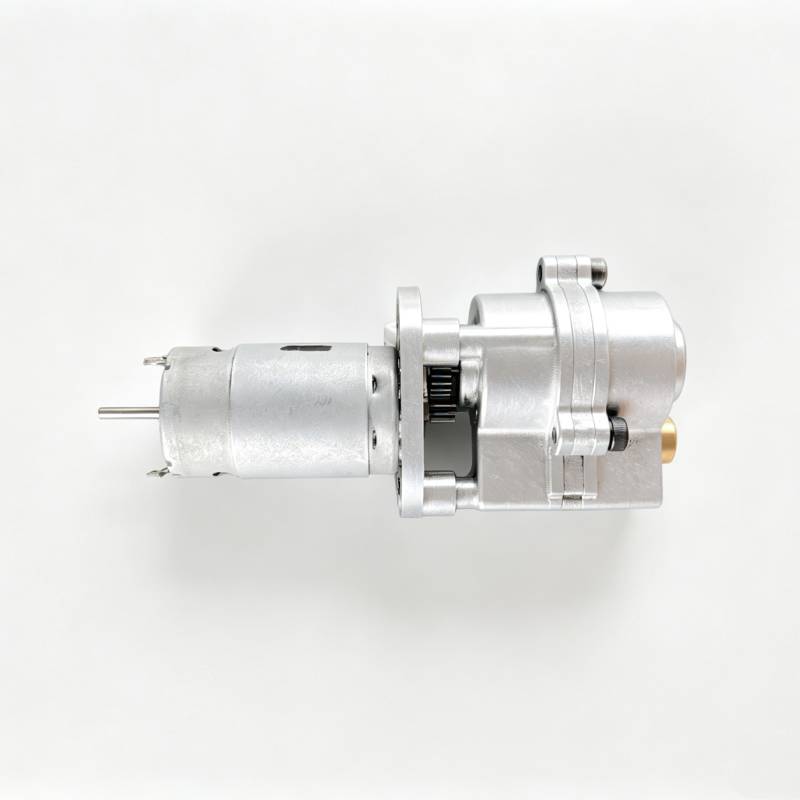

Professional Air Pump Movement Manufacturer | Source Factory with Patent Technology
Our air pump core adopts independent invention patent technology, featuring small size with large displacement, strong air output and stable performance.
Designed with optimized internal structure, it achieves low noise, low vibration during operation, smooth running and ultra-long service life.
We support export business, OEM & ODM custom service, complete specifications available.
Strict quality control, factory direct supply and global shipping are provided.
Welcome global customers to inquire, customize and establish long-term cooperative partnership.
Air Pump Movement Basic Parameters (English Version)
✅ Core Specifications
Parameter Item Specification
Product Name DC Mini Air Pump Core / Micro Air Pump Movement
Working Voltage DC 6V / 12V / 24V (Customizable)
Working Current 0.3A–2.0A (Matched by model)
Max Flow Rate 1–10 L/min (Large displacement design, high output in small size)
Max Pressure 0.05–0.25 MPa (Customizable according to application requirements)
Vacuum Degree (Optional) -50kPa ~ -80kPa (Negative pressure models available for customization)
Noise Level ≤55 dB (@30cm, low noise & low vibration operation)
Service Life ≥50,000 cycles (Under standard conditions, ON/OFF 10s/5s)
Protection Grade IP40 (IP54/IP65 upgrade available)
Operating Temperature -10℃ ~ +60℃
Material Pump body: Aluminum alloy / Engineering plastic; Core components: Wear-resistant metal + patented structure
Drive Type DC Brushed / Brushless Motor (Optional)
Mounting Type Vertical / Horizontal standard mounting holes, suitable for integration with various equipment
Applicable Media Air, dry gas (Weak corrosion-resistant versions available for customization)
